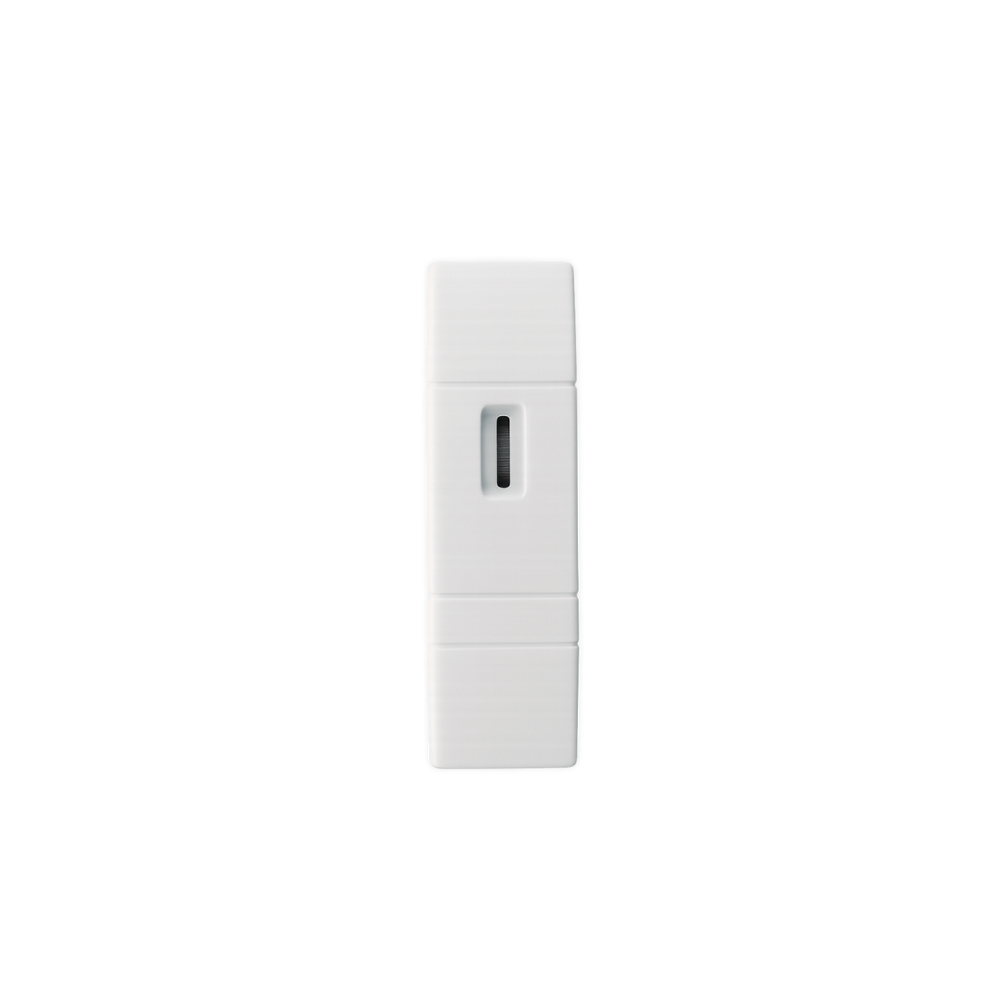

BS-VD513 Photoelectricity Vibration Sensor Wired (Acoustic Sensor) อุปกรณ์ตรวจจับแรงสั่นสะเทือน
Features
- Rated Voltage: 12VDC (9VDC to 16VDC)- Rated Current: ≤20mA (at 12VDC)
- Covering Detection Area (Radius): Concrete: 0.5m, brick wall: 1.5m, iron steel: 2m, Glass: 2.5m, Plank: 2.5m
- LED Indicator Light: Will be bright for 40 seconds after turning on this detector
- Sensitivity: potentiometer adjustable
- Sensor: Acoustic Sensor
- Alarm Output: NC, 24VDC, 0.3A (NO is optional)
- Alarm Period: 2±0.5 seconds
- Tamper Switch: NC, it will be open when the shell or detector is removed
- Installation Method: Surface Mounting
- Weight: 20g
- Working temperature: -20 degree to 50 degree
- Working Humidity: <85%
- Size (L x W x H): 114 x 34 x25mm
Product Information Sheet (PDF)
- กด "Download" ได้ที่นี่
