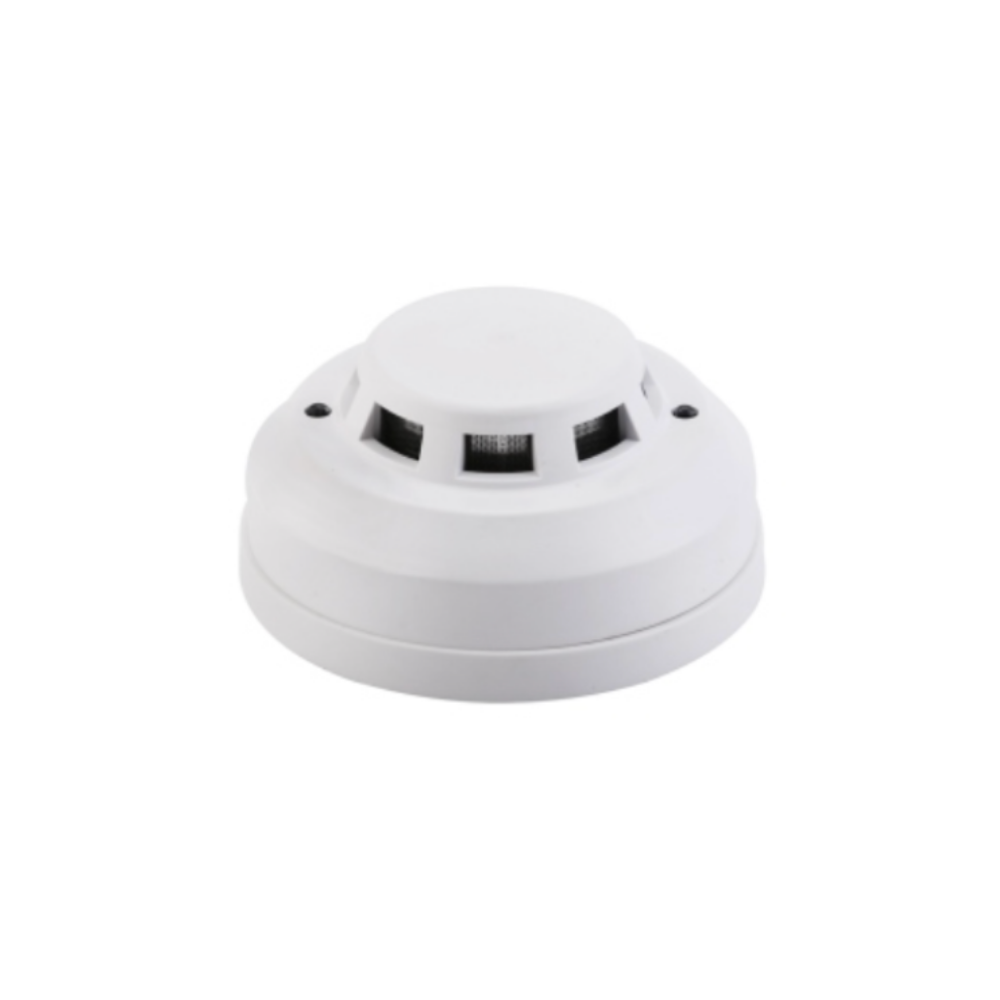

BS-M532 Wired Photoelectric Smoke Detector อุปกรณ์ตรวจจับควันไฟแบบ 4 สาย
Features
- Auto Reset / Power Failure Reset for your option
- Double Metal Shield in the front cover and back cover
- SMT Design, High Stability
- Mothproof, Dustproof, anti-white light
- Rated Voltage: 12VDC
- Rated Static Current: 2mA- Rated Alarm Current: 10mA
- Working Humidity: ≤95%
- Working Temperature: -10°C to 50°C
- Sensitivity: I level
- EMI/RFI Immunity: 10MHZ to 1GHZ 20v/m
- Net Work Relay Output: N.C., 28VDC, 100mA
- Detecting Area: 80㎡ when installation height is 6m to 12m;
- 60㎡ when installation height is less than 6m.
- Size (Diameter x H): 104x 52mm (with bracket)
